Wash Analytics Monitor
The Wash Analytics Bay Monitor allows you to track up to 12 different functions inside a single bay. User dashboard allows you to monitor your locations, customers, usage, and revenue. Generate custom data tables and charts to view your site's performance or analyze customer washes as they happened with timeline charts.
Features are being added regularly, and all customers receive free updates for the life of the product.
The Wash Analytics Monitor is designed to be easy to install and use.
Click the features tab to get a complete list of features and benefits.
The Wash Analytics Monitor allows self serve car washes to accurately monitor their revenue and bay usage. The Wash Analytics Monitor accepts the 24v signal coming from your bay's rotary switch and records the customer's usage of that function. When the customer finishes washing, the monitor sends the usage data to the web server. This data is used to provide you with customer insights previous unavailable to self serve car wash owners.
Owners can create a "location" for each of their car washes, and create the "functions" inside each bay. By assigning those functions to the input it's plugged into, the monitor can report what your customers are using, when they're using it, and how long they're using it.
The monitor utilizes push-connect wire terminals for power and bay inputs making installation a breeze.
Designed to operate on both 24 AC and DC power/inputs.
Shared COM/GND means you only have to connect the function's Hot/Positive wire to the monitor
The monitor connects directly to any 2.4ghz wifi for reporting data and is also equipped with a redundant mesh network capable of relaying data to neighboring devices in case of wifi connectivity issues.
Temporary storage of sales data for up to 20 customers allows the monitor to continue to function normally during an internet or server outage.
Electronic components are coated for moisture and corrosion resistance
We have resources available in our "Support" section for those who need help installing.
- Warranty:
- 1 year warranty against defects or failures from normal use.
- Input:
- 24V AC/DC
- Inputs:
- recording of up to 12 inputs
- Inputs:
- 12
- Voltage:
- 24v AC/DC (common cathode/com)
- Warranty:
- 1 year
- Connectivity:
- 2.4ghz wifi with self-organizing redundant mesh network between devices
- Each device can function independently, multiple devices form a mesh network with each other. If a device cannot establish a wifi connection, it will transmit its data through neighboring devices.
- Offline storage of up to 20 customer tickets in the event of an internet/server/power outage.
- Coated electronic components for moisture and corrosion resistance
- Easy to install, push-connect wire terminals for power and bay inputs.
-

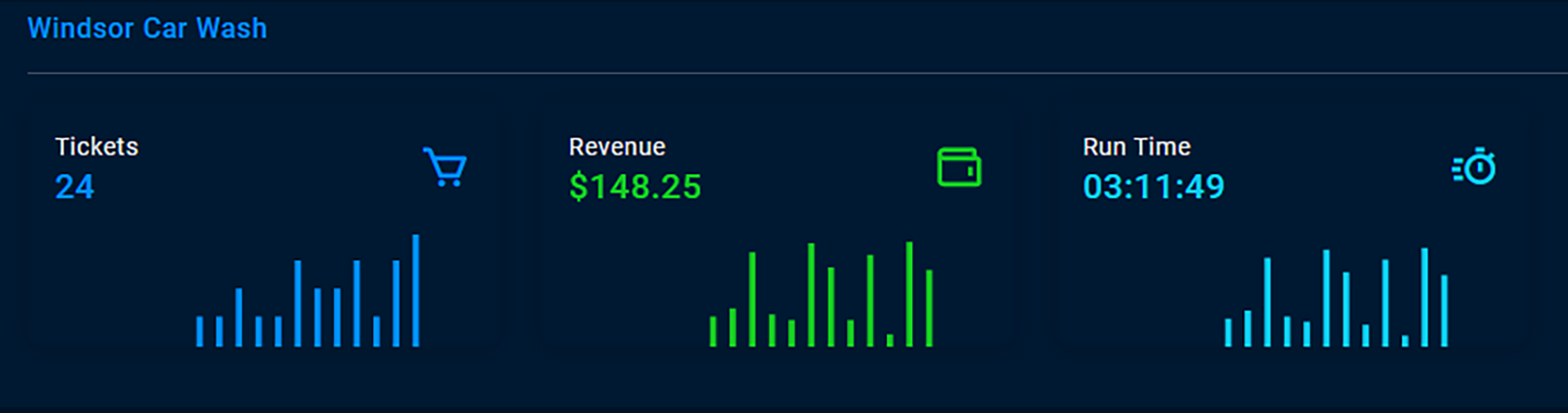

Track Customer count, revenue, and bay run times
-

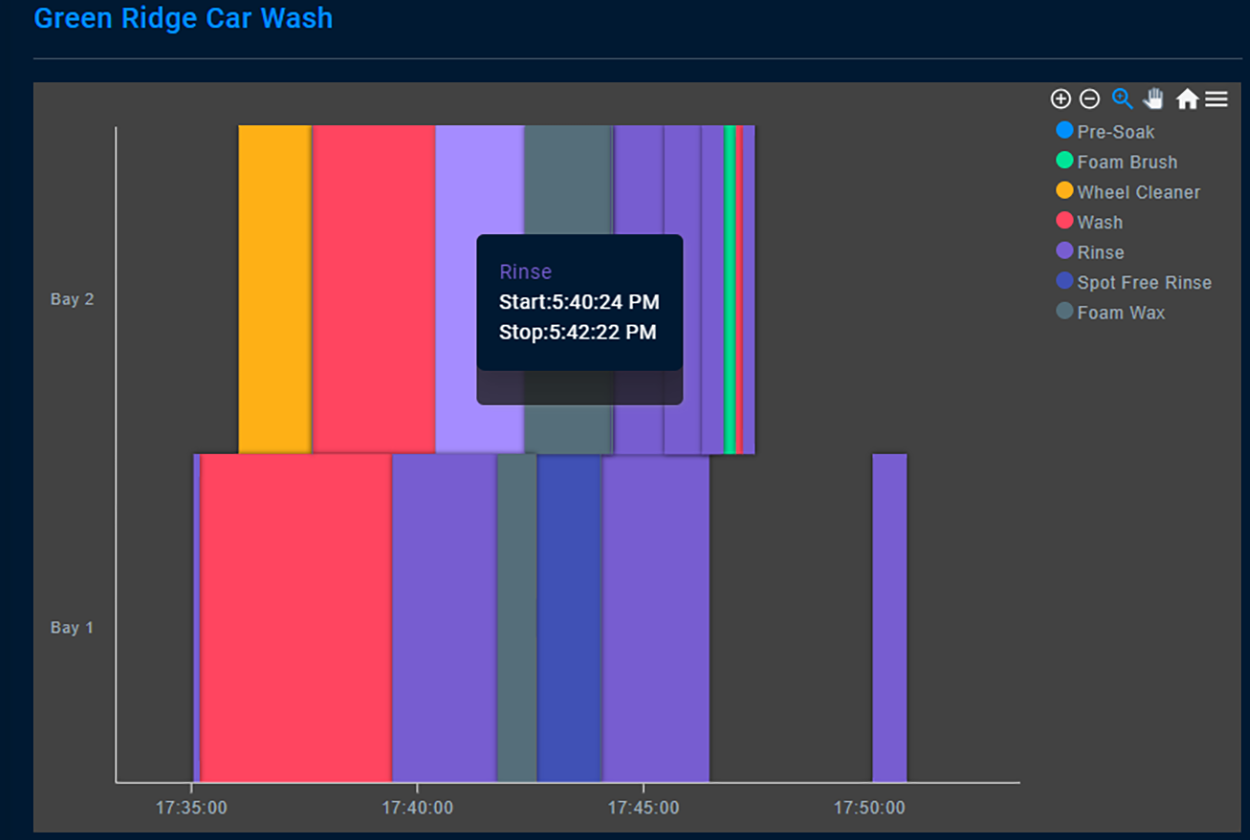

View customer usage in real time with milliseconds accuracy. See what they used, when they used it, how long they used it for, and in what order they used it.
-

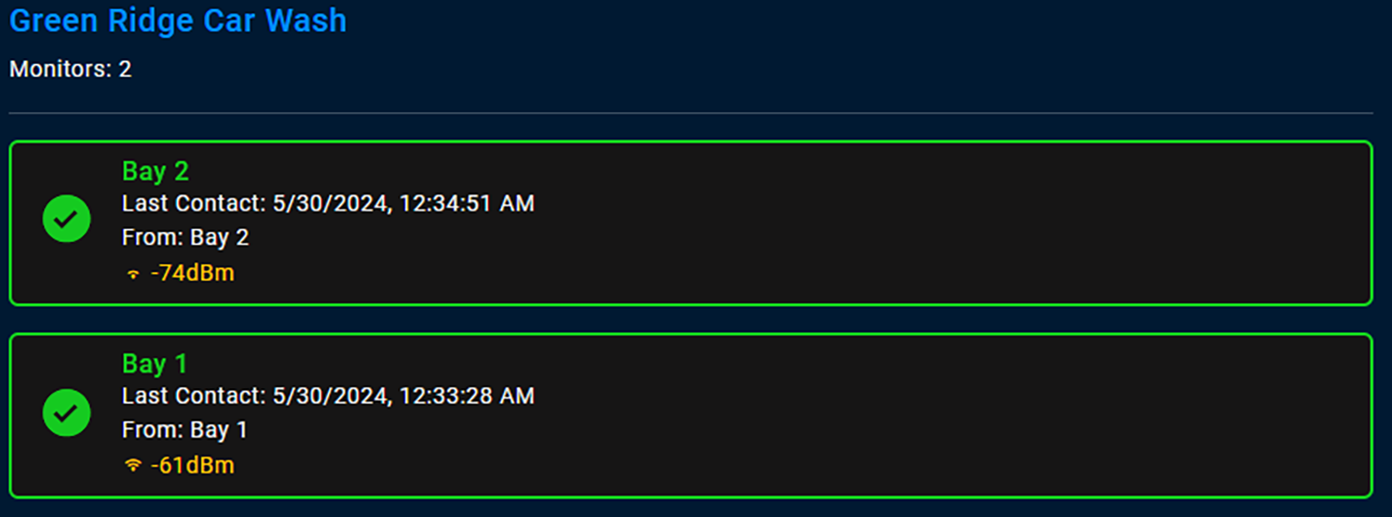

Monitor sites and receive E-mail/SMS notifications during internet or power outages
-

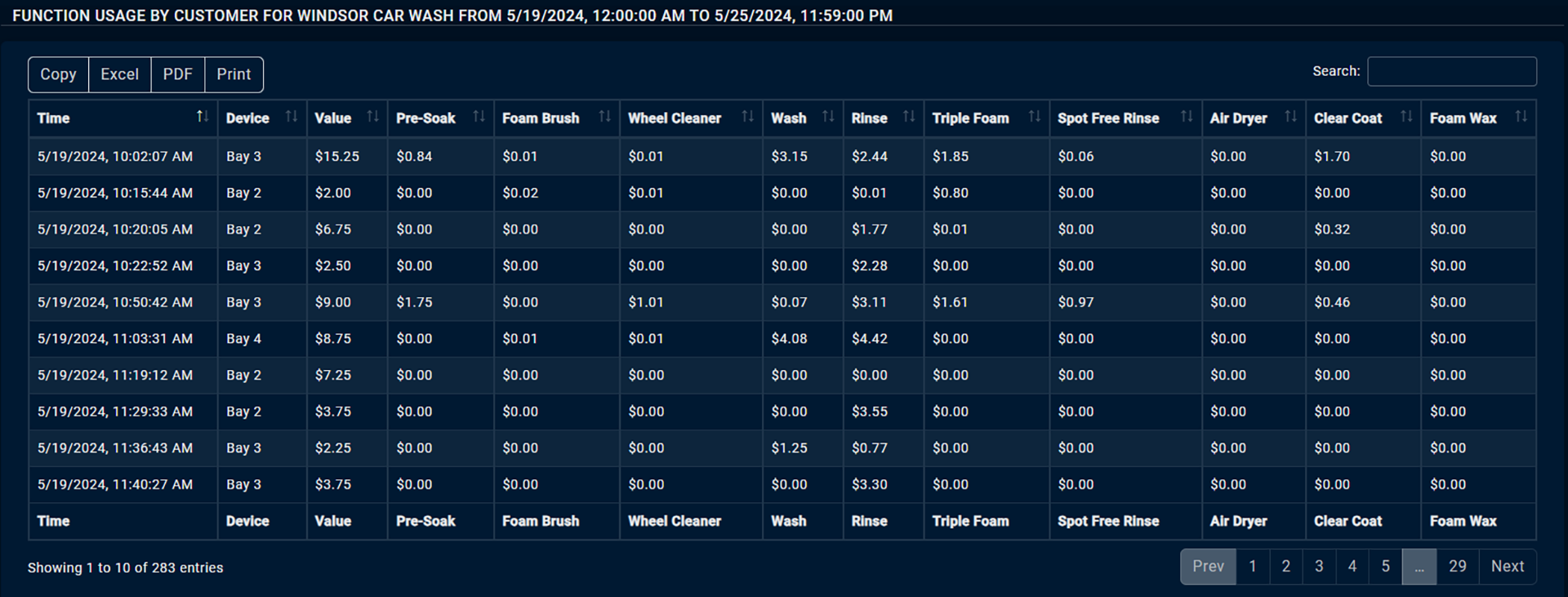

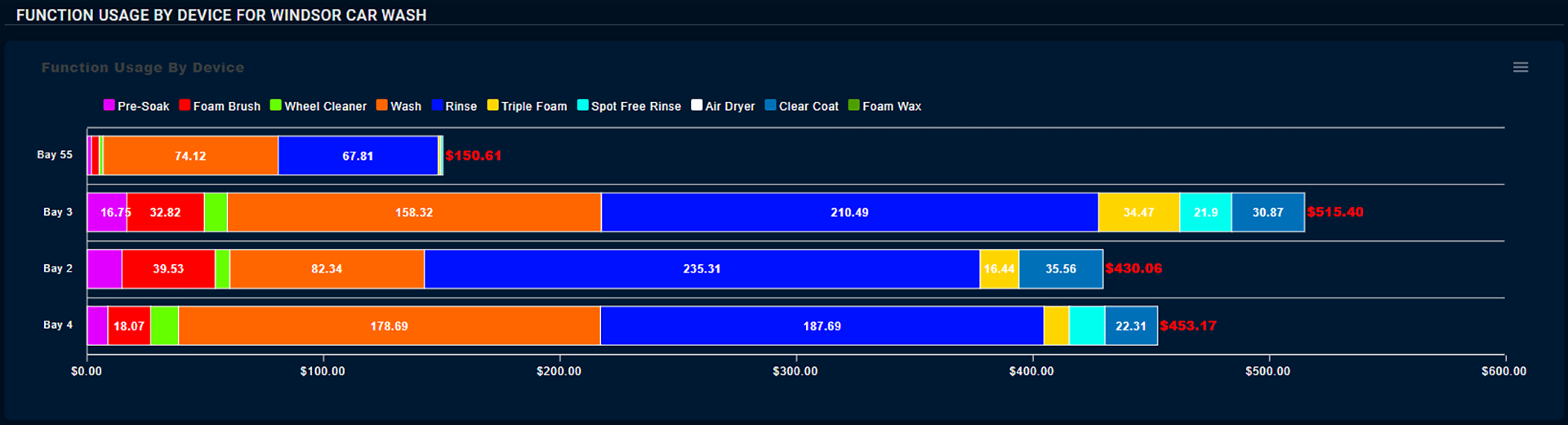

Generate data tables and charts based on customizable search criteria
- Installation and operating manual:
- Here
- Installation and setup videos:
- SS car wash wiring
- Mounting template:
- Here
